How do you install the Touratech Tool Kit to be used with our MotoBags?Updated a month ago

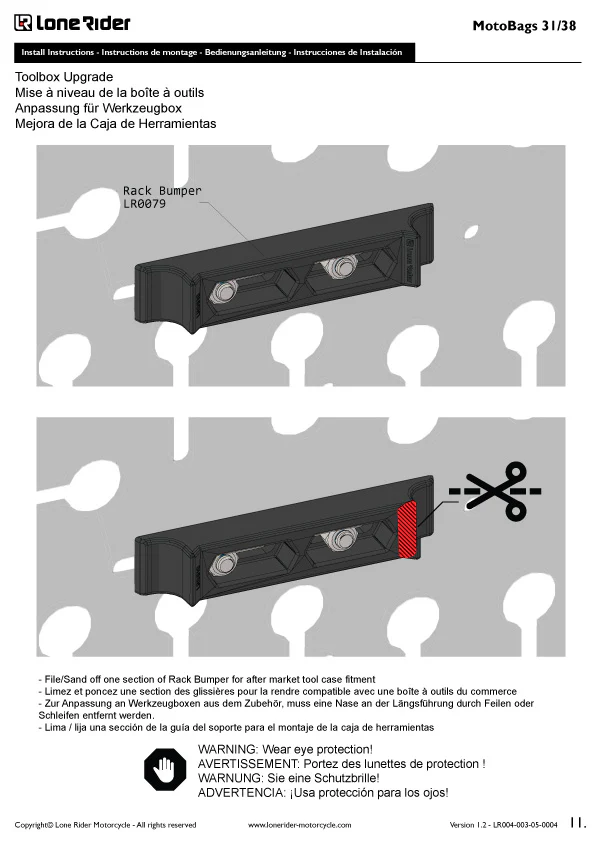

For Motobags Quick Release please refer to the installation PDF or see below illustration.

For fixed MotoBags:

Recommended preparation: Shorten 2 bolts from the MotoBag Puck set by 1cm.

Step 1:

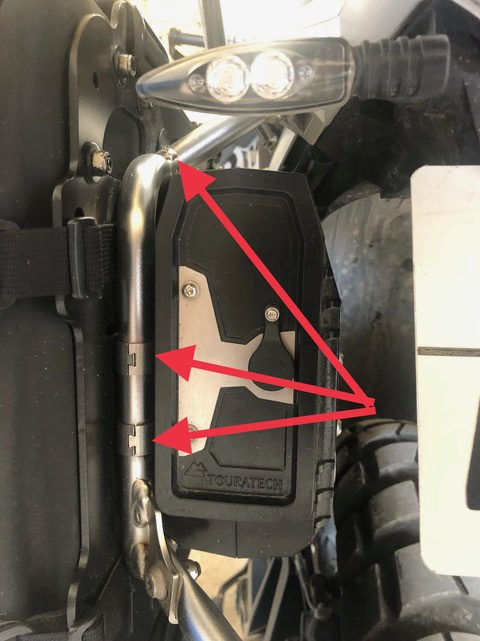

Attach the TT tool box first, following TT instructions

Step 2:

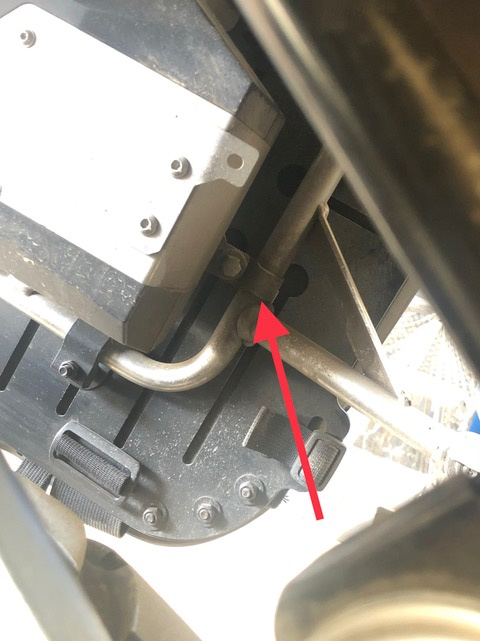

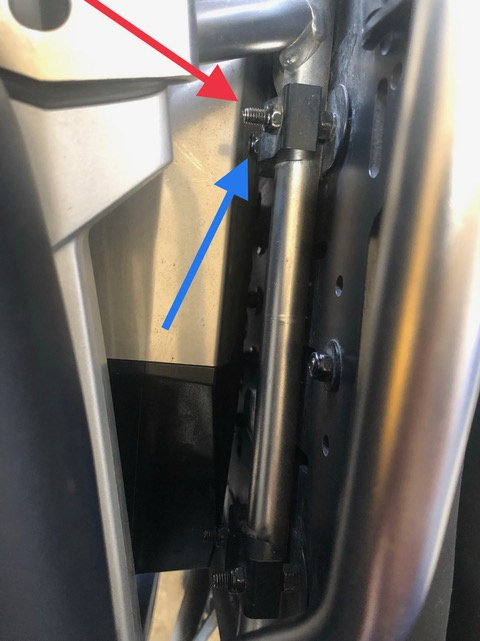

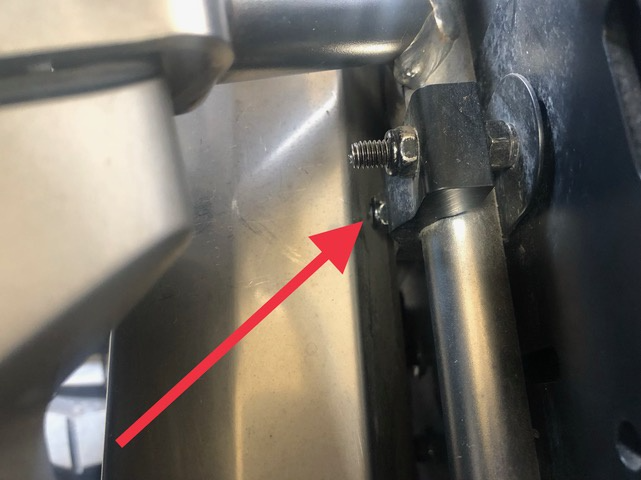

While attaching the MotoBag as per the instructions, you will notice the second screw on top, closest to the TT tool box will be too long and needs to be cut short by some 1cm (blue arrow).

(The cut shown is too short [but it works ;)], ideally, two filaments must remain after tightening the nut.)
